Laser projector complete

Laser projector complete

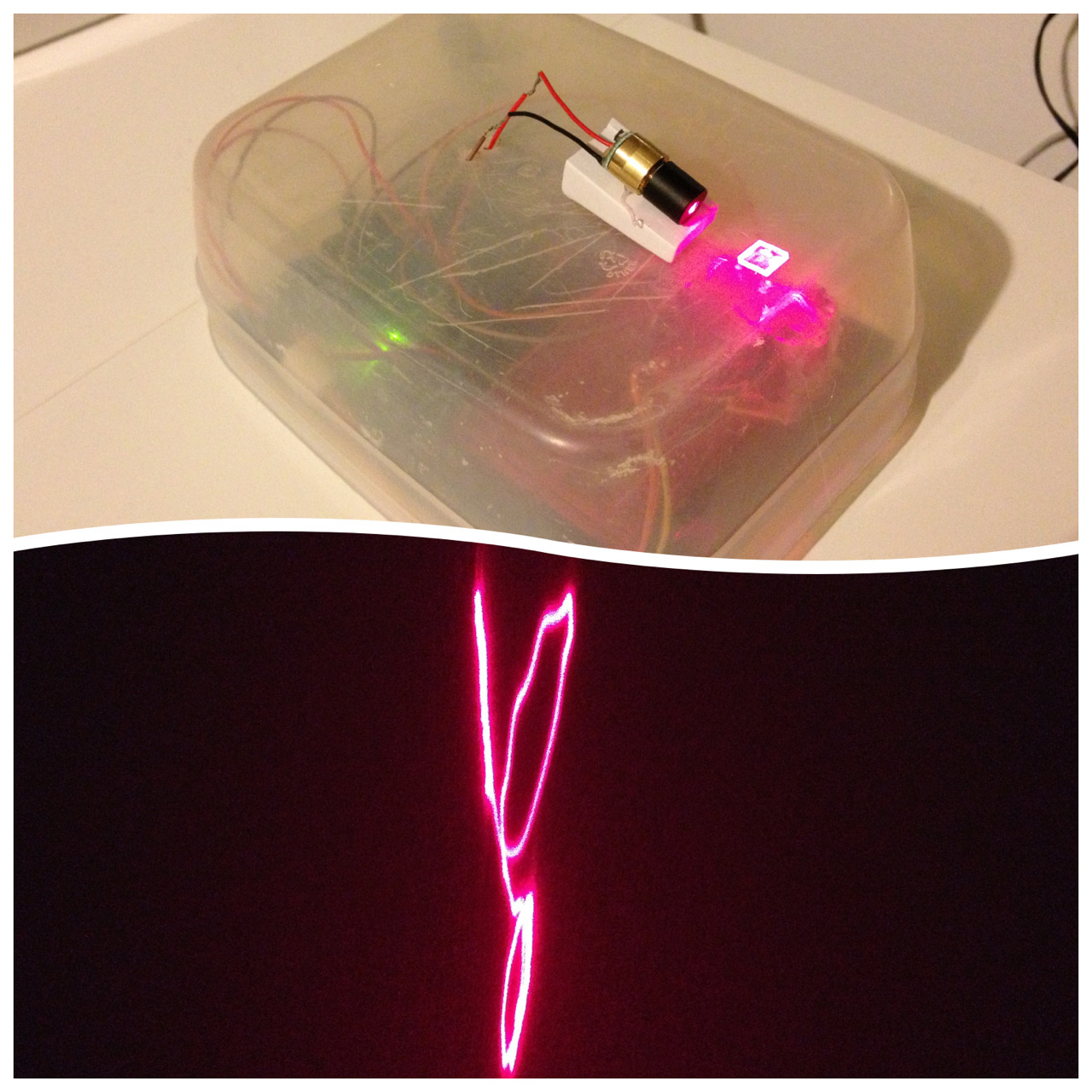

2013-02-12Laser projector complete! Some kind of projector, at least… As you can see, it moves more on the Y axis than on the X axis. Tweaks are needed… Assembly notes: • Lens movement mechanism from DVD (see previous post). • Mirror also from DVD. Tiny! 5*5 mm or something. • Laser LED mounted on soft […] Read more

Laser project phase 2

Laser project phase 2

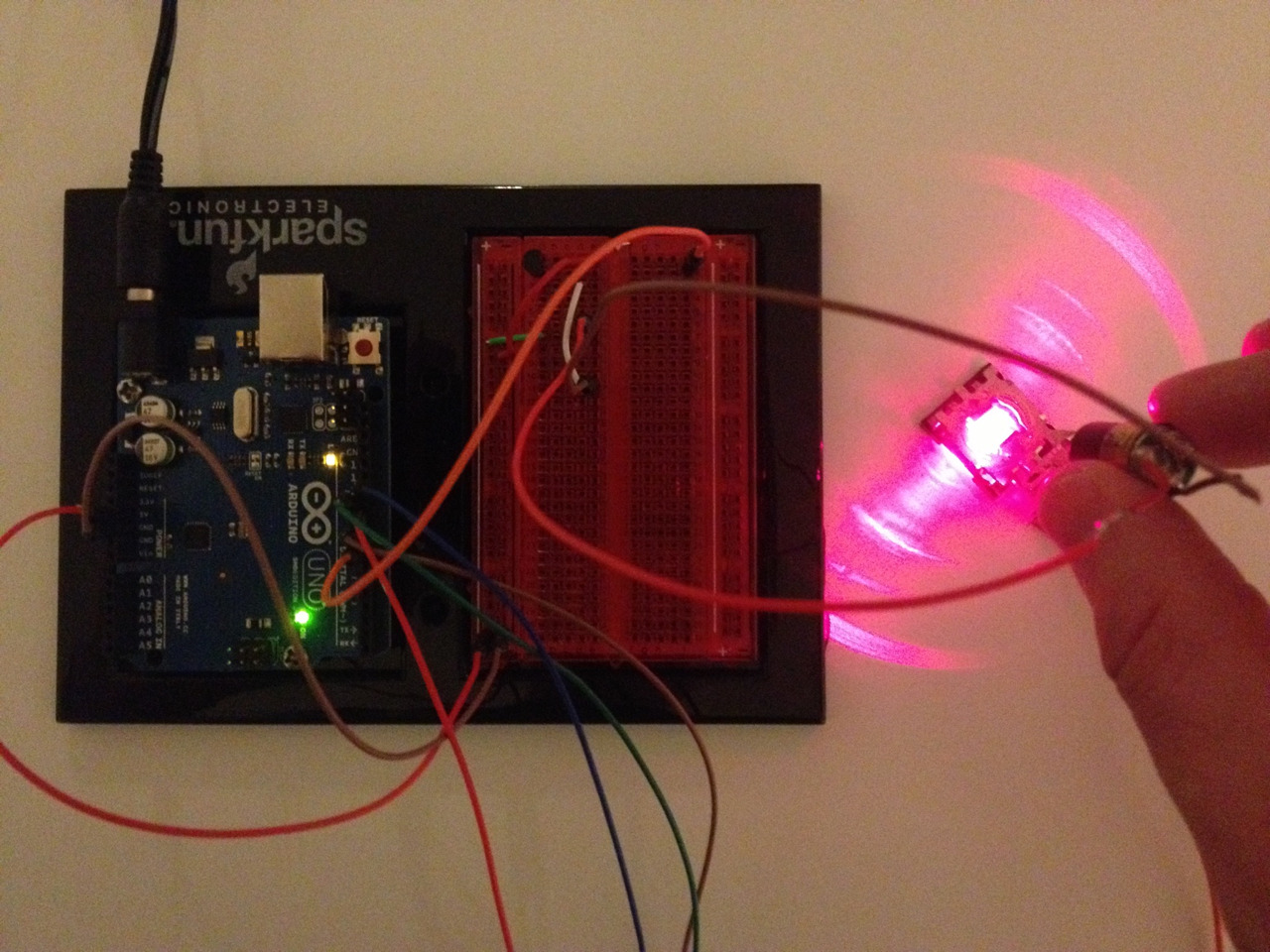

2013-02-11Laser project phase 2; now with a moving lens mechanism dissected from a DVD drive (inspired by Ljudmila’s instructable: http://www.instructables.com/id/Micro-LASER-Show-with-a-CD-Lens-Mechanism/). Yes, now I’m rummaging garbage for spare parts… Read more

Finalized the casing for the ultrasound sensor project today

Finalized the casing for the ultrasound sensor project today

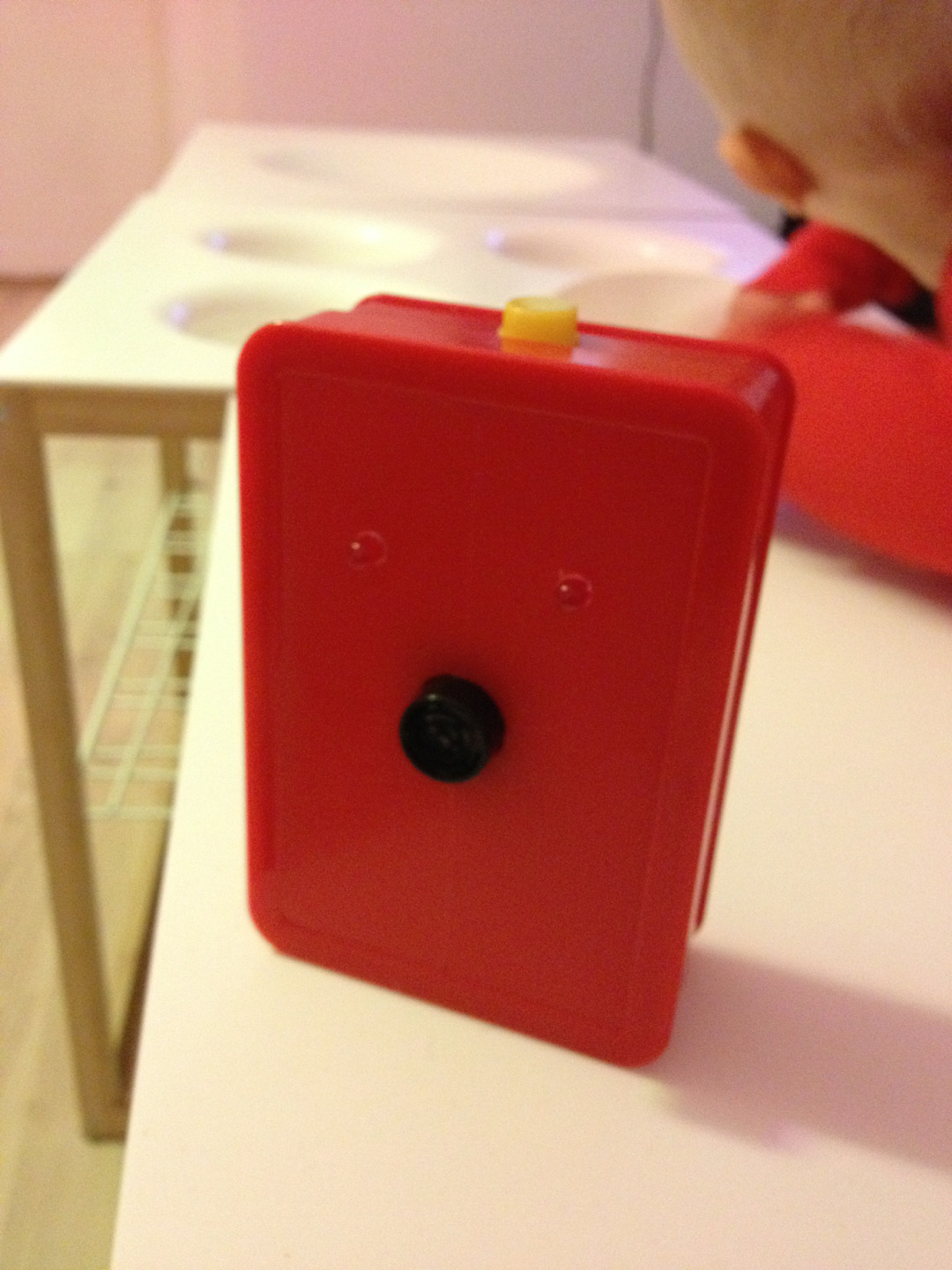

2013-01-26Finalized the casing for the ultrasound sensor project today. It’s designed as a small “robot”, with two red LEDs as eyes and the SRF02 distance sensor as nose/mouth. There’s a small reset button on the top. I found the casing itself in the wonderful store Material (http://www.materialbutiken.se) in Stockholm for just 15 SEK. It fits […] Read more

divigif

divigif

2013-01-25divigif: Persistence of vision is the bomb! Read more

lanasays

lanasays

2013-01-24lanasays: Tetris and C64 scroller on my Arduino and a 8×8 LED matrix Read more

ArduBotics: MAKE – Male Jumper Wires

ArduBotics: MAKE – Male Jumper Wires

2013-01-24ardubotics: The Problem Are you also always short on jumper wires? And does it also annoy you that good, solid jumper wires are pretty expensive if you want to buy them? If you answered “yes” to both questions above, then this might be interesting for you. After experimenting with solid core cables to use… ArduBotics: […] Read more

…and the results from the soldering

…and the results from the soldering

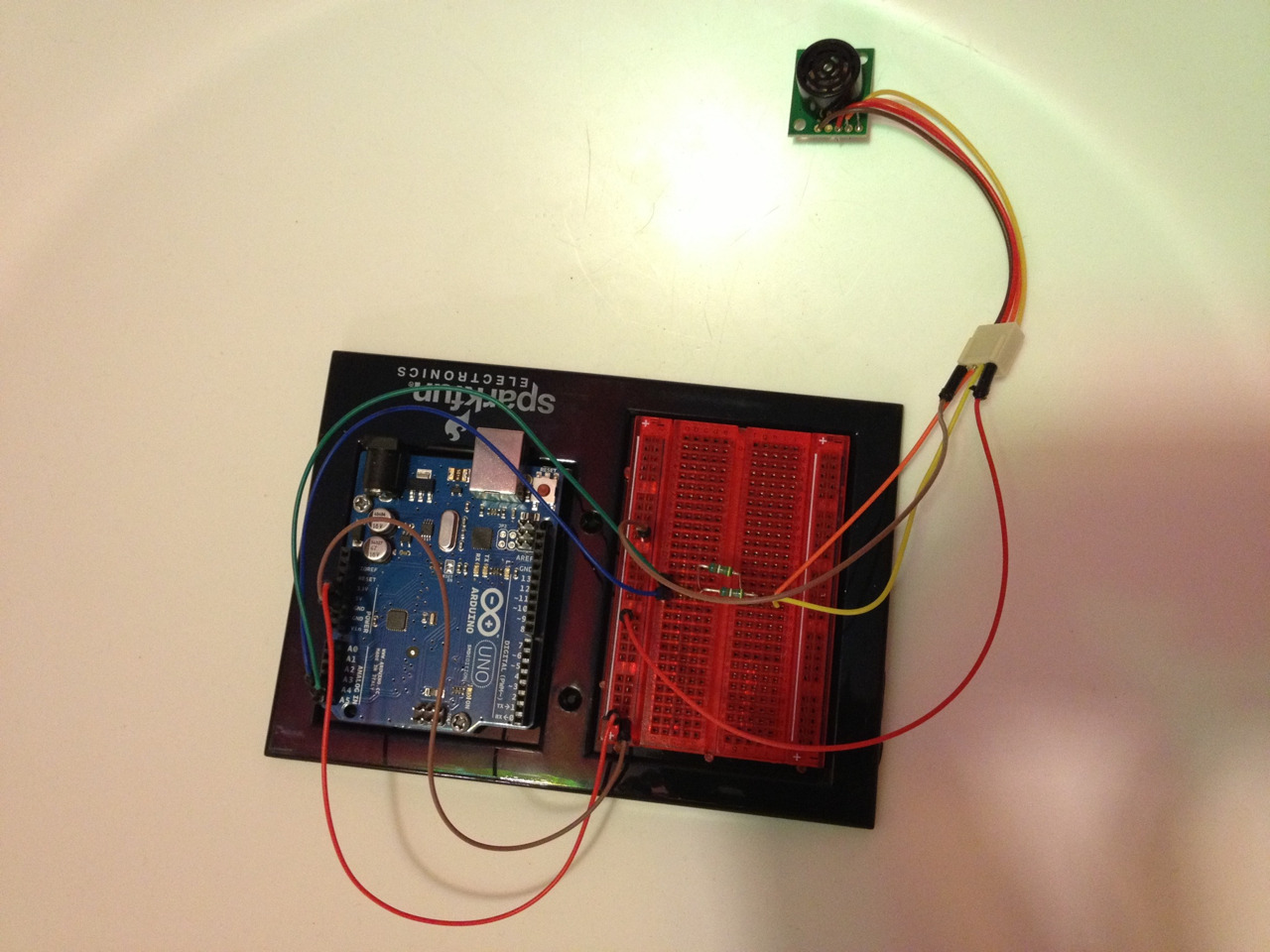

2013-01-24…and the results from the soldering: a working distance meter using ultrasound! Currently it just prints the distance on the serial port, but will form the basis of a simple proximity alarm. I can recommend this SRF02 framework: http://www.grapelabs.org/arduino/libraries/srf02-ultrasonic-distance-sensor Read more

Just lost my “soldering virginity”

Just lost my “soldering virginity”

2013-01-24Just lost my “soldering virginity”! Pretty happy with the results. In case you wonder, that’s an SRF02 distance sensor. Read more

Now we’re talking

Now we’re talking

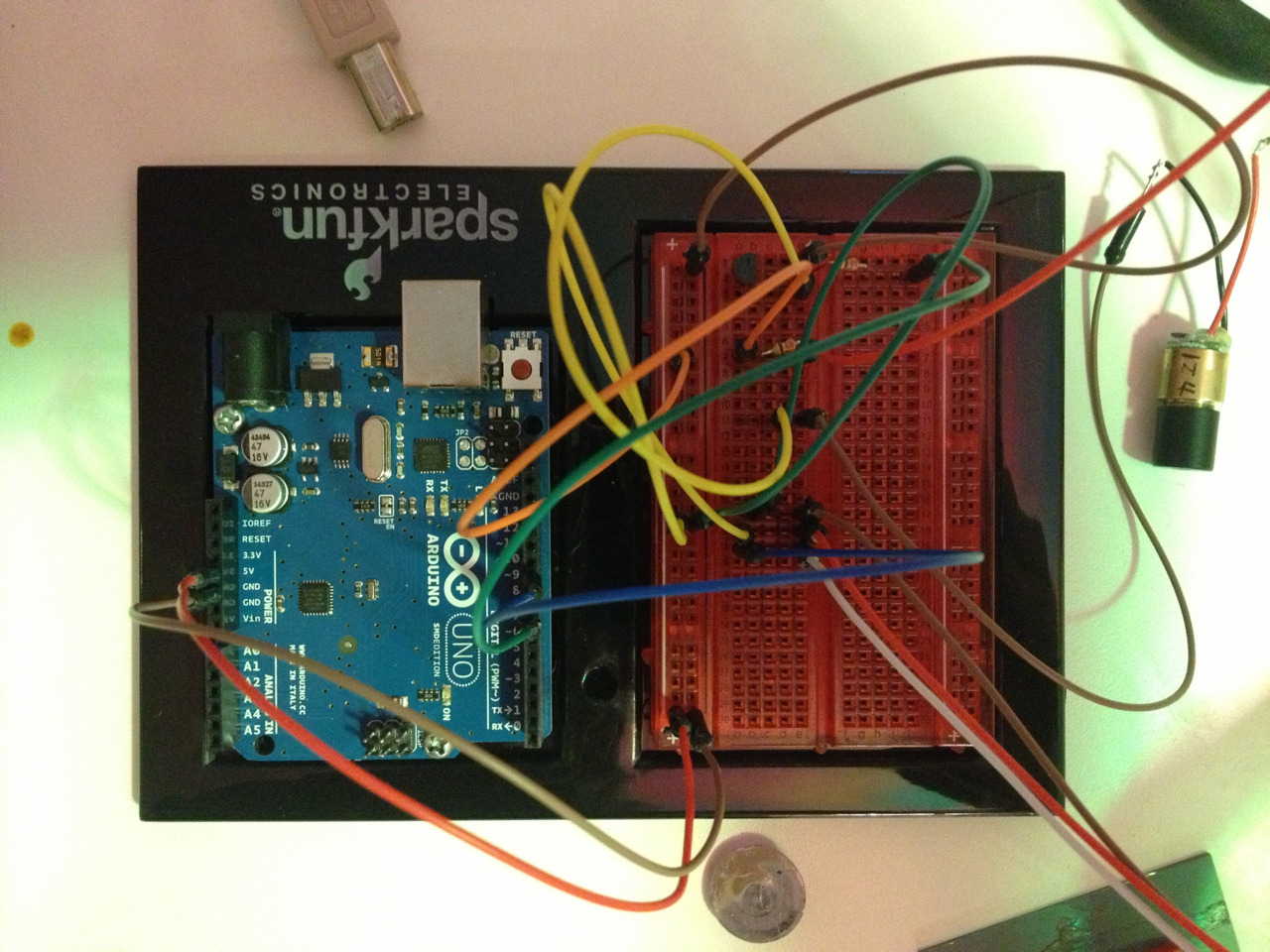

2013-01-23Now we’re talking – a friggin’ laser! Coupled with a servo. Feels too slow for a laser projector. Also, need to build some kind of housing for all the gear. Read more

Basic tilt sensor

Basic tilt sensor

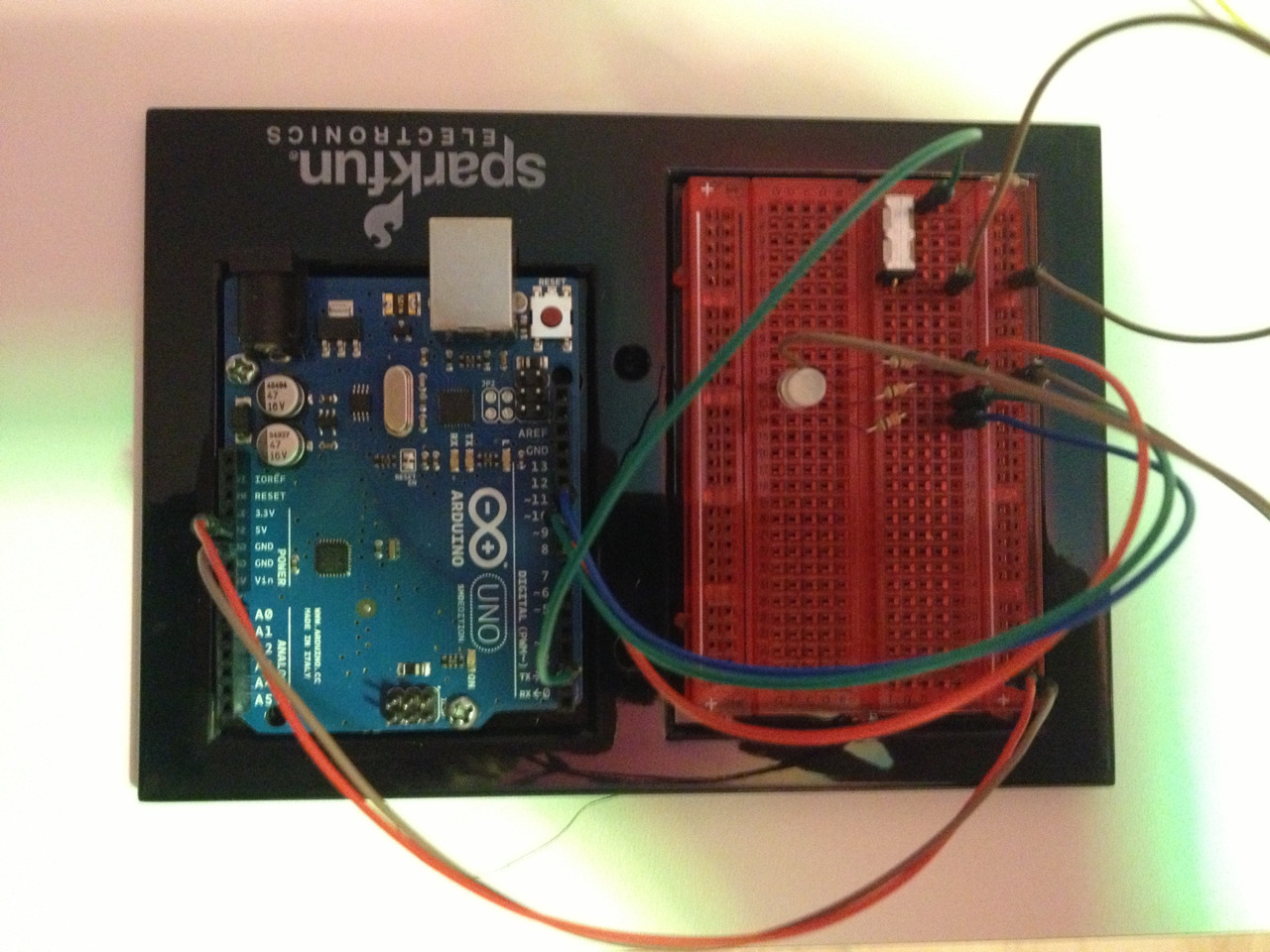

2013-01-23Basic tilt sensor. Not too much fun. Read more

Augmenting the SparkFun temperature tutorial with an RGB LED

Augmenting the SparkFun temperature tutorial with an RGB LED

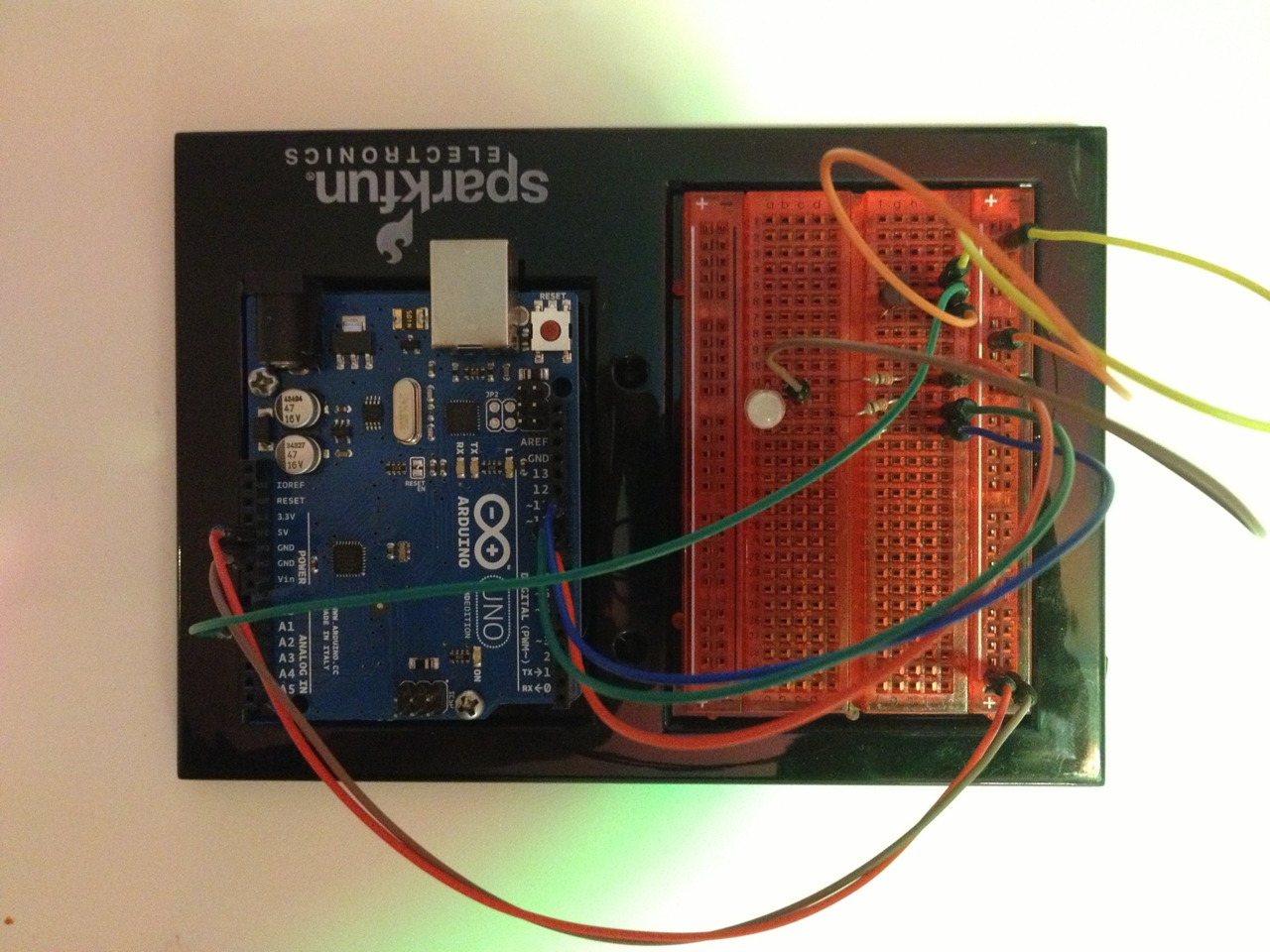

2013-01-23Augmenting the SparkFun temperature tutorial with an RGB LED. Read more

Just ordered my first SparkFun Arduino kit

Just ordered my first SparkFun Arduino kit

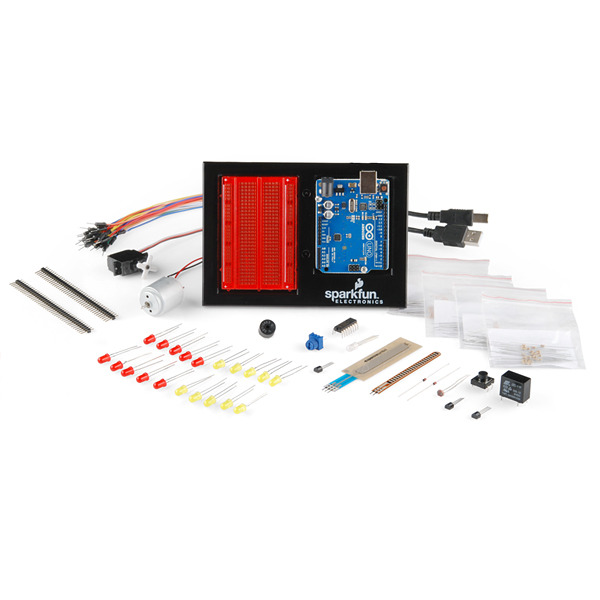

2013-01-08Just ordered my first SparkFun Arduino kit (from the Swedish store Lawicel)! Source: sparkfun.com Read more

Got a littleBits kits from my kid sister for X-mas

Got a littleBits kits from my kid sister for X-mas

2012-12-24Got a littleBits kits from my kid sister for X-mas. The electronics spark has fired up! Read more
